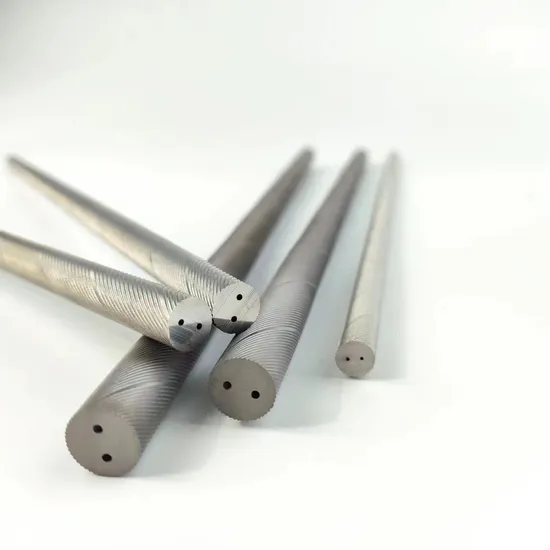

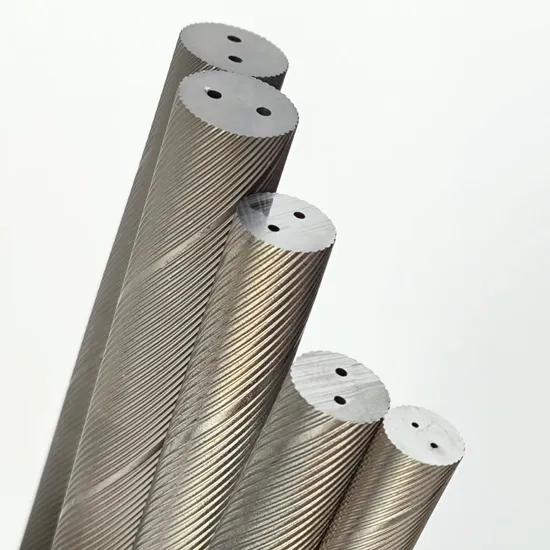

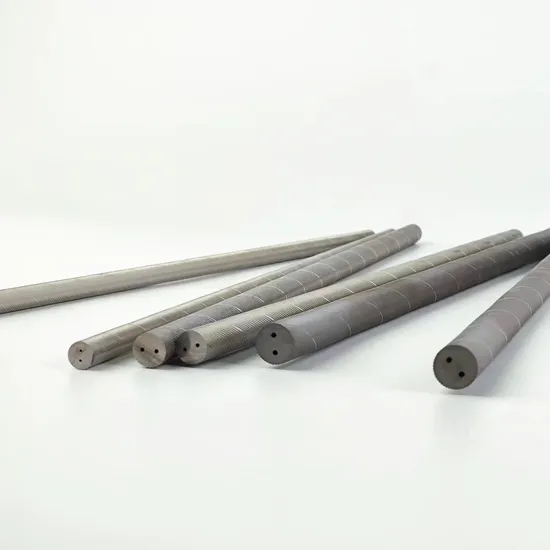

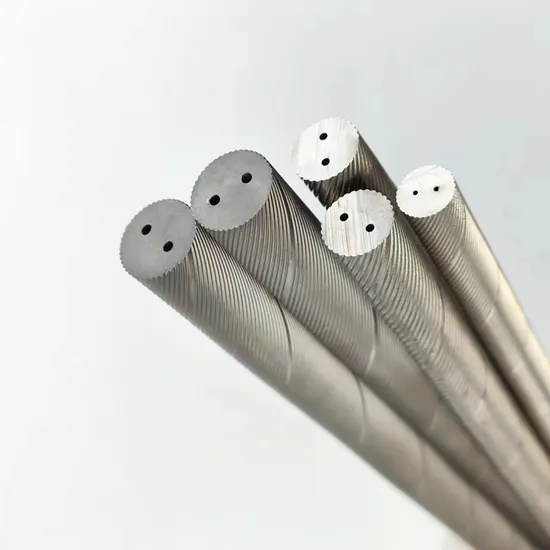

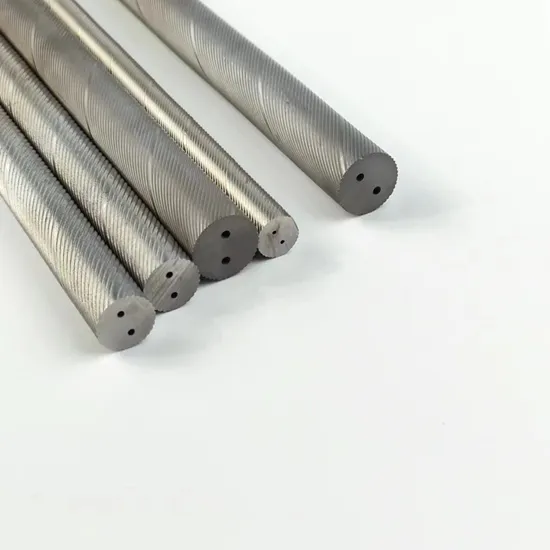

Helical Coolant Holes Tungsten Carbide Rod Blanks

High-performance tungsten carbide rods with two helical coolant holes, engineered for manufacturing superior carbide cutting tools.

Product Description

Manufactured from 100% virgin WC and Cobalt raw materials ensuring maximum purity and performance.

Utilizes advanced HIP (Hot Isostatic Pressing) sintering process for uniform density and superior mechanical properties.

Engineered with two helical coolant holes for efficient heat dissipation in high-speed cutting applications.

Ideal for producing high-performance cutting tools like end mills, drills, and reamers for metalworking.

Offers exceptional hardness, high wear resistance, and durability for extended tool life and precision.

Available in standard 330mm lengths and various diameters, with customization options to meet specific drawing requirements.

Product Parameter

Material Composition: 10% Cobalt (Co), 90% Tungsten Carbide (WC) - Grade YG10X

Diameter Range: 0.5mm to 60mm, customizable

Standard Length: 100mm and 330mm

Hardness (HRA): >91.5

Transverse Rupture Strength (T.R.S.): >3500 N/mm²

Density: >14.45 g/cm³

Product FAQ
